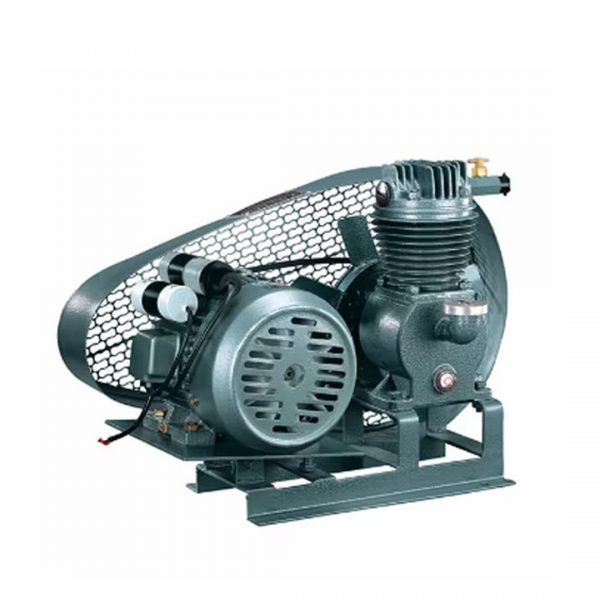

V-GUARD VBCM-FH400 (1Ph BELT COMPRESSOR 1.5HP)

Name: V-GUARD VBCM-FH400 (1Ph BELT COMPRESSOR 1.5HP)
SKU: kilco077
Price: 21560.00 INR
Availability: InStock

₹21,560.00

Air Pipe Size:12 mm

Belt:A 38

Brand:V-Guard

Compressor Water Lifting Height Vs Discharge:25 Mtrs: 4000 LPH

Country of Origin:India

Duty Type:Continious S1

Model:VBC FH400

Operating Pressure:7 Kg/cm2

Phase:Single Phase

Power:1.5 HP, 1.1 Kw

Pumping Height:75 Mtrs

Series:VBCM Series

Speed:900 RPM

Total Depth:100 Mtrs

Voltage range:180- 240 V

Water Pipe Size:25 mm

Weight:29 Kg

SKU: kilco077 Category: V-guard water pumps Tag: V-guard compressor belt

Body: Rigid Cast Iron motor body
Insulation: Class ‘B’
Bearings: Double sealed ball bearings with life lubrication
Motor shaft: High quality Alloy Steel
Motor: The pumps are coupled to high efficient V-Guard induction motors. The motors are Totally Enclosed Fan Cooled (TEFC), capacitor start, capacitor run type. Also equipped with Thermal Overload Protector (TOP) to avoid coil burn out
Direction of Rotation: Clockwise, when viewed from motor side.
